UHF RFID Long Range Reader R2000 ISO18000 6C Interface WG26/34/RS232/RS485

Sale price $491.63 Regular price $575.00

YR-9292 is a EPC Class 1 Gen2 UHF RFID long range fixed reader. With cutting edge technology from the US, 9292 has great inventory rate and tag reading rate. It can handle tags in motion, meanwhile successfully achieved massive tags and intense reading.

















FEATURE:

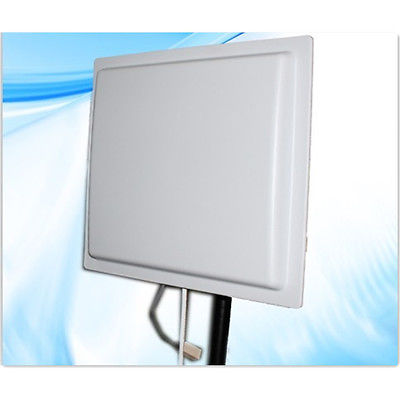

l  Integrated, high performance 12dBi vertical antenna ensure long-range reading& writing and easy installation;





l  Multi-protocol support: ISO 18000-6C(EPC Gen2);





l  Super anti-interference ability for its FHSS frequency working method;





l  Software with different Programming language allows easy upgrade;





l  Waterproof and sunshine defending, idea for outdoor applications;





l  All kinds of communication interfaces and customizing is available too.





PARAMETER:

























Working frequency





902928 MHz,865~868MHz(customized)





Chip





IMPINJ R2000





Protocol





ISO18000-6CEPC G2





Software





DEMO





SDK





Provide C , JAVA development of routines





Communication port





RS232,RS485,WGTCP/IP or WIFI customized





Reading Range





Stable reading range 25M





Tags handling volume





Reading and writing0-200 tag(Depends on tags)





Working temperature





-40℃~+65℃





RSSI





RSSI signal strength detection label





Power





DC7.5-12V,3A





Weight





5KG





Size





450×450×50MM

















APPLICATION:































Intelligent traffic such as ETC;





Custom border-crossing;





Parking lot;





Automatic weighting;





Logistics such as container management;





Pallet management;





Asset tracing etc.;







Ticketing and access control system.







Package included:

1.UHF Reader(RS232/WG26/RS485)

2.SDK sent by email



Please note:



we don't supply the software,because different client have different use.

we can supply the SDK to you and you can develop the software by yourself.



TCP/IP and wifi is optional,if you need,please contact with us.
